Garmin QuickFit Spring Bar Adapters - Wear Any Non-Garmin Strap!

SKU: ADAP-G-SILV

$19.95 AUD

Hurry! Only 14 Left in Stock!

26mm
22mm
20mm

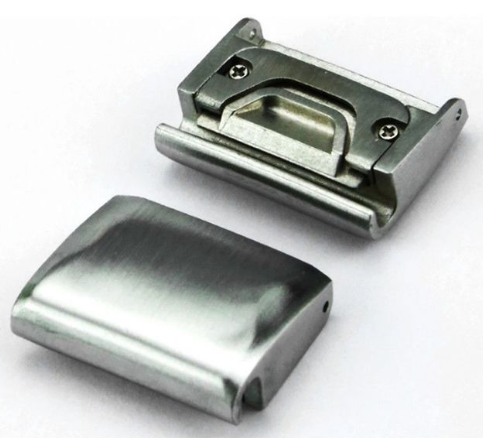

Silver

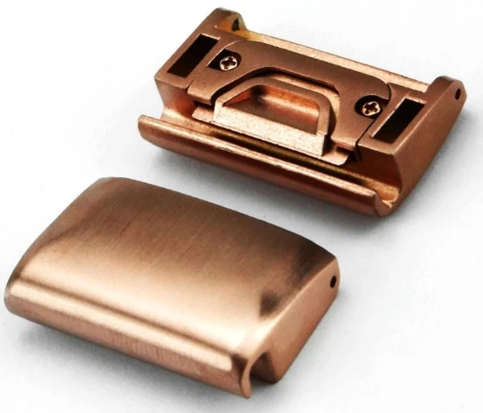

Rose Gold

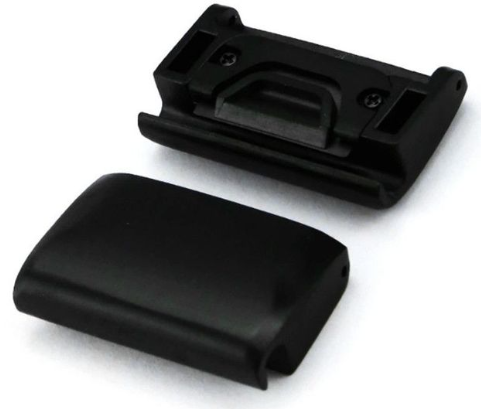

Black
22mm
20mm
18mm
Spend an extra $70.00 AUD to get free EXPRESS shipping! Free standard shipping when you spend $20.

Pickup available at Our Warehouse

Usually ready in 24 hours

Garmin QuickFit Spring Bar Adapters - Wear Any Non-Garmin Strap!

26mm / Silver / 22mm

Afterpay
PayPal
Apple Pay
Google Pay
Shop Pay
Visa
Mastercard
Bitcoin
PRODUCT INFORMATION
Smartwatch Strap Size Finder
How to find your Strap Size manually
PRODUCT INFORMATION

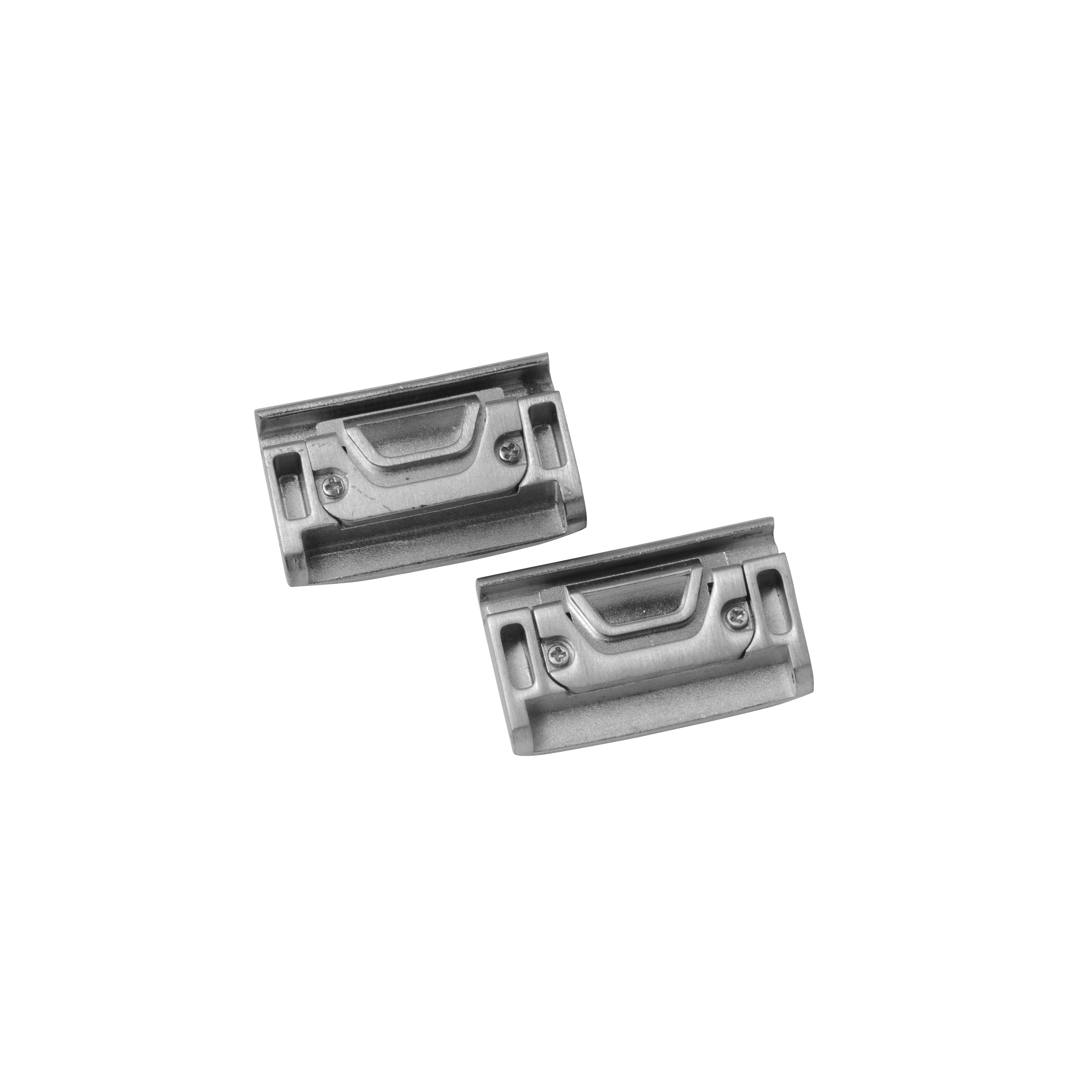

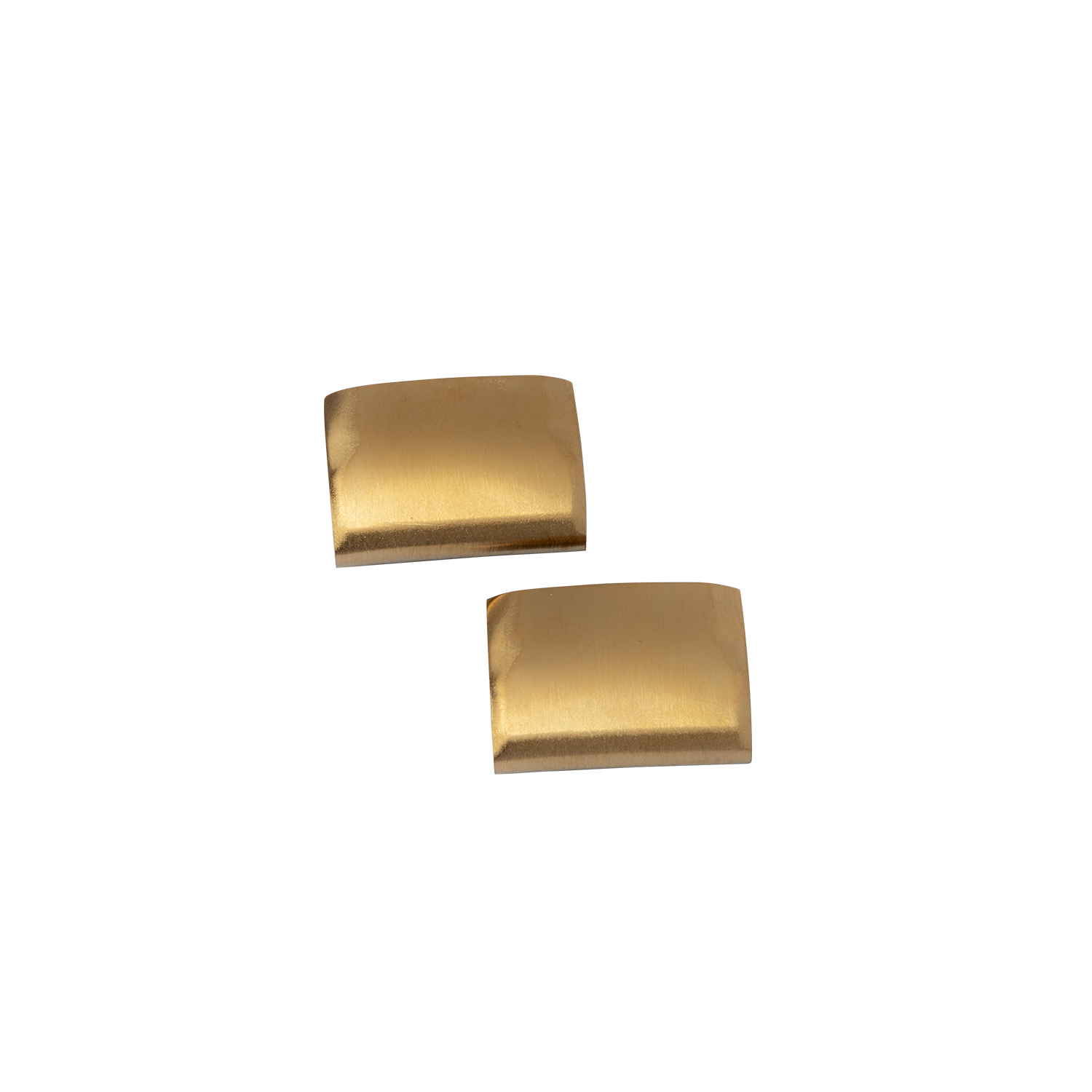

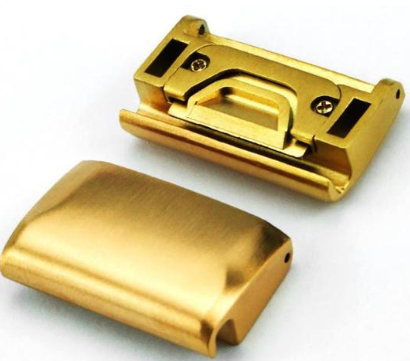

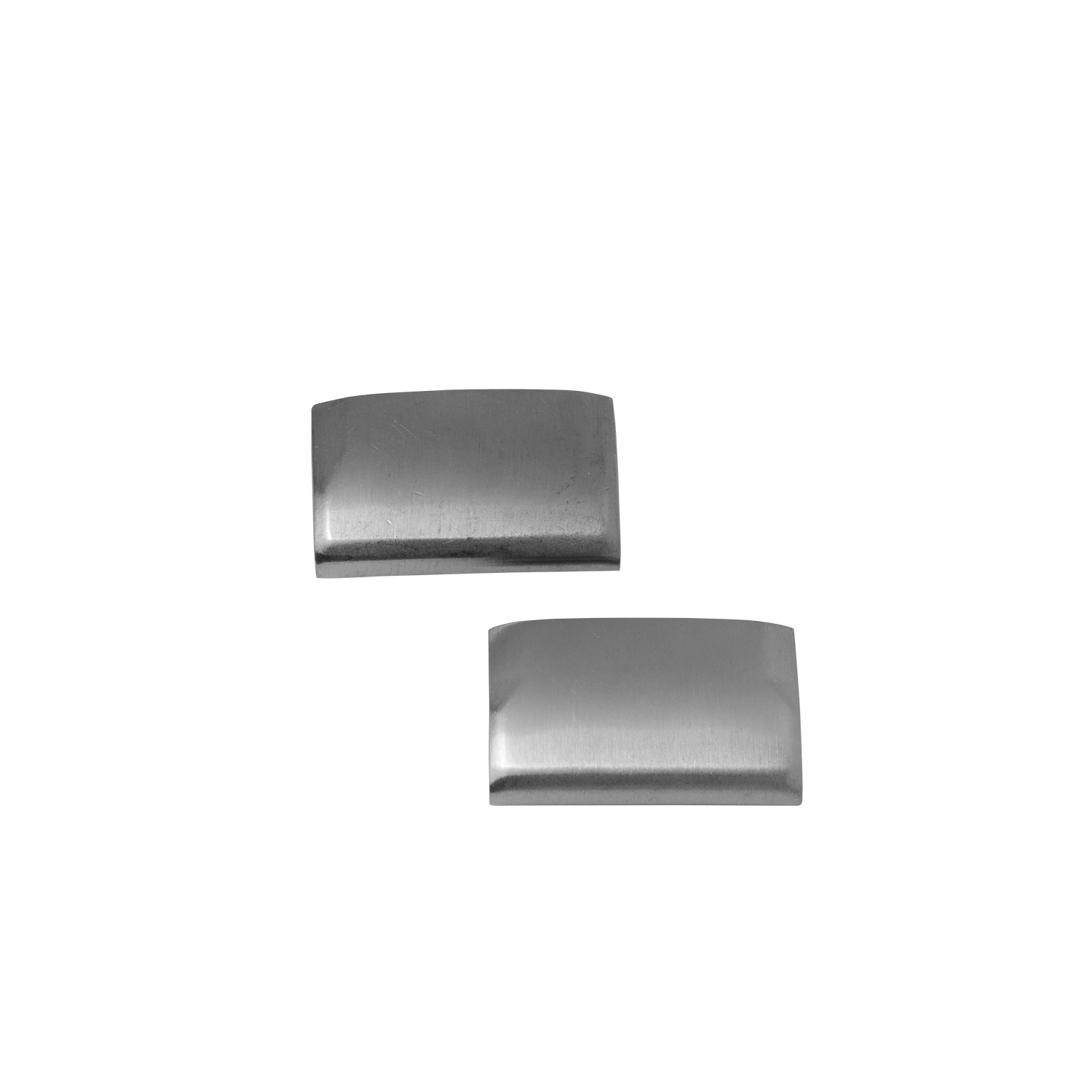

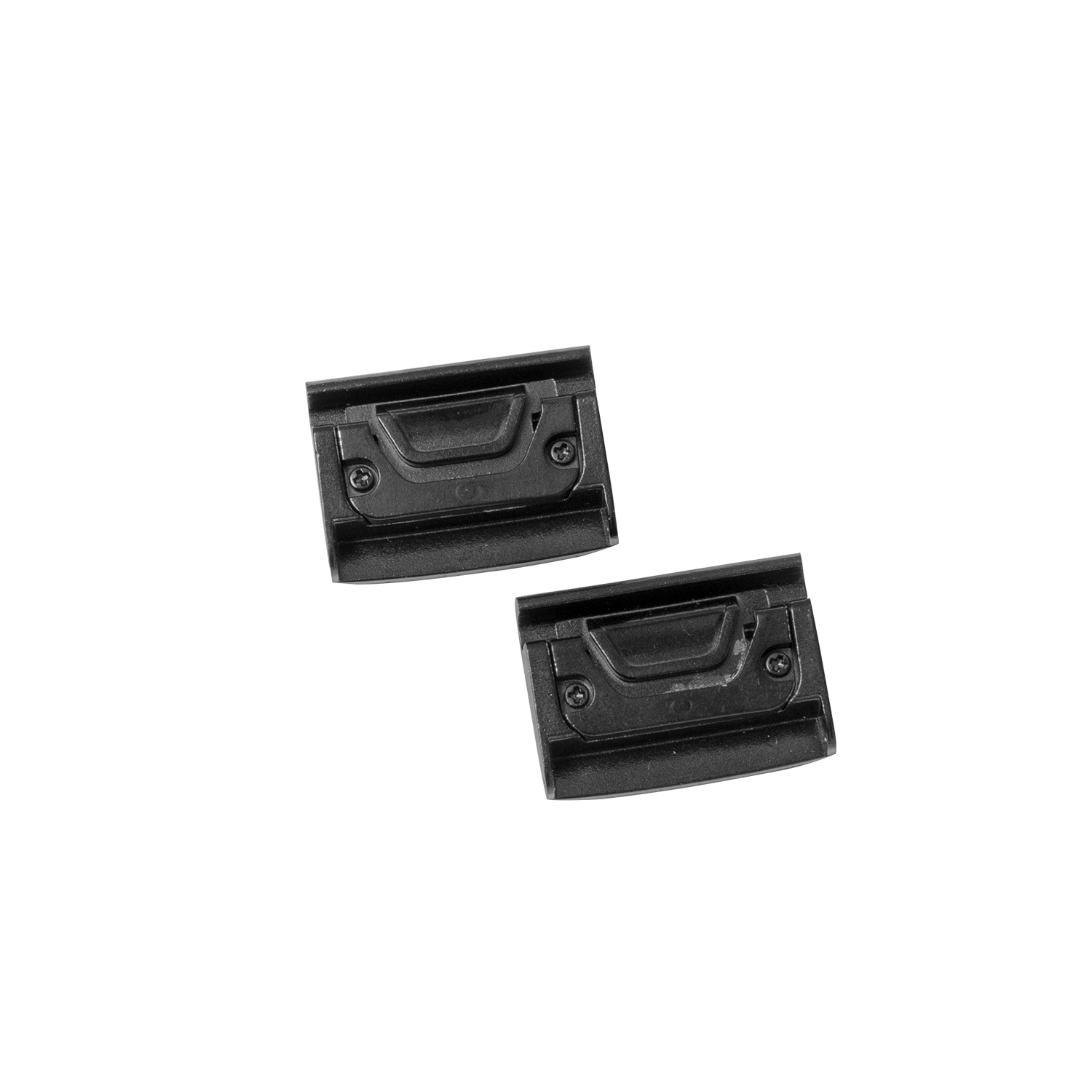

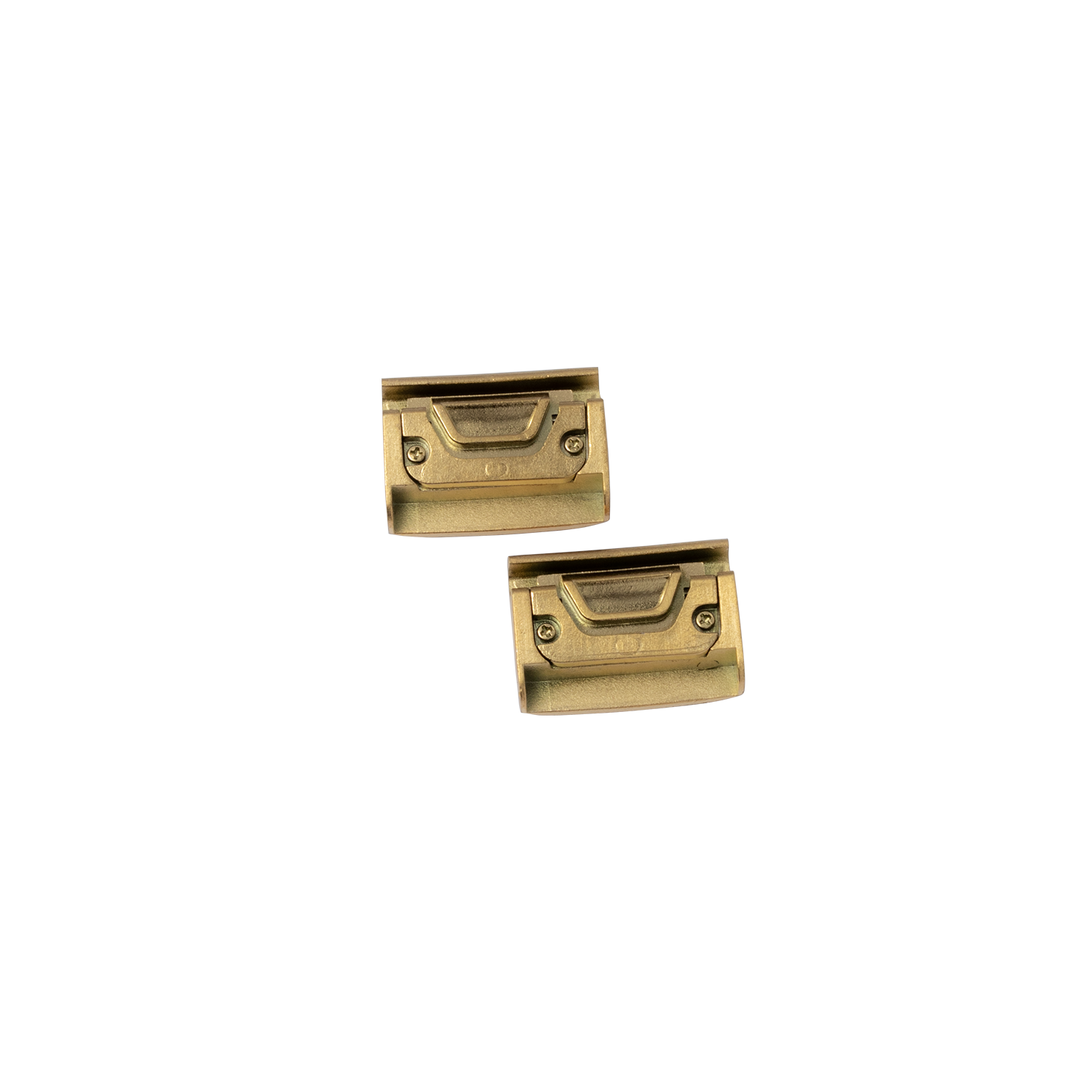

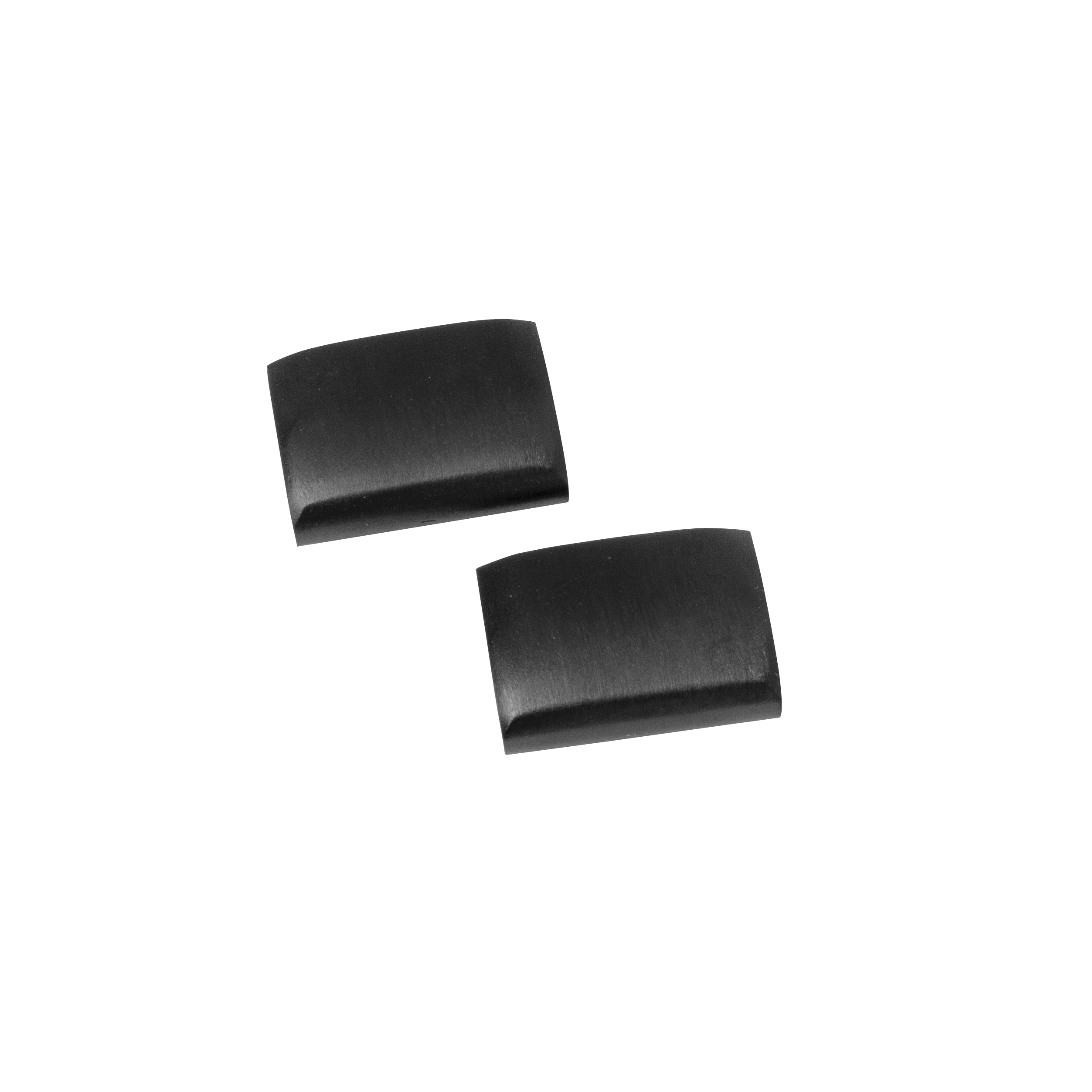

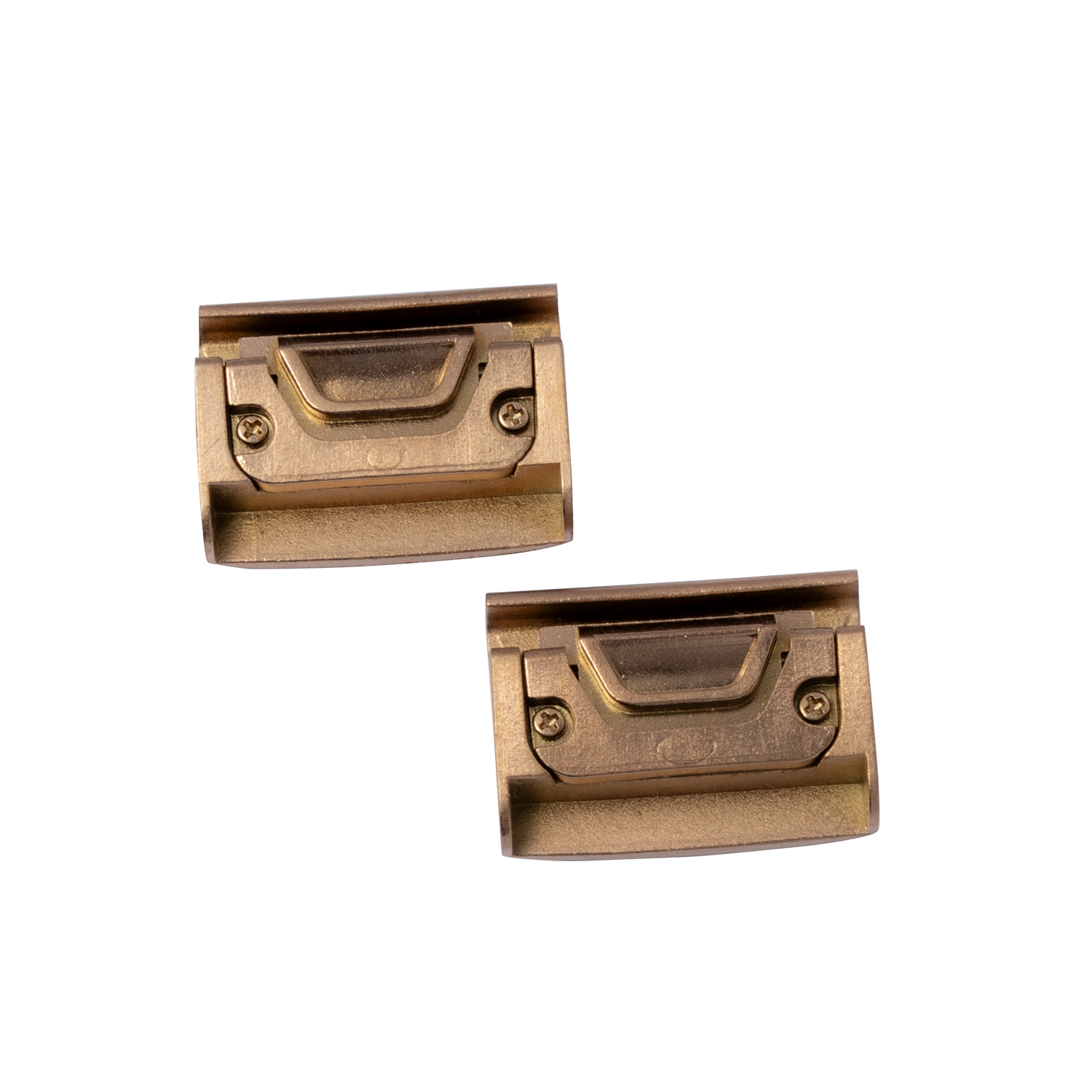

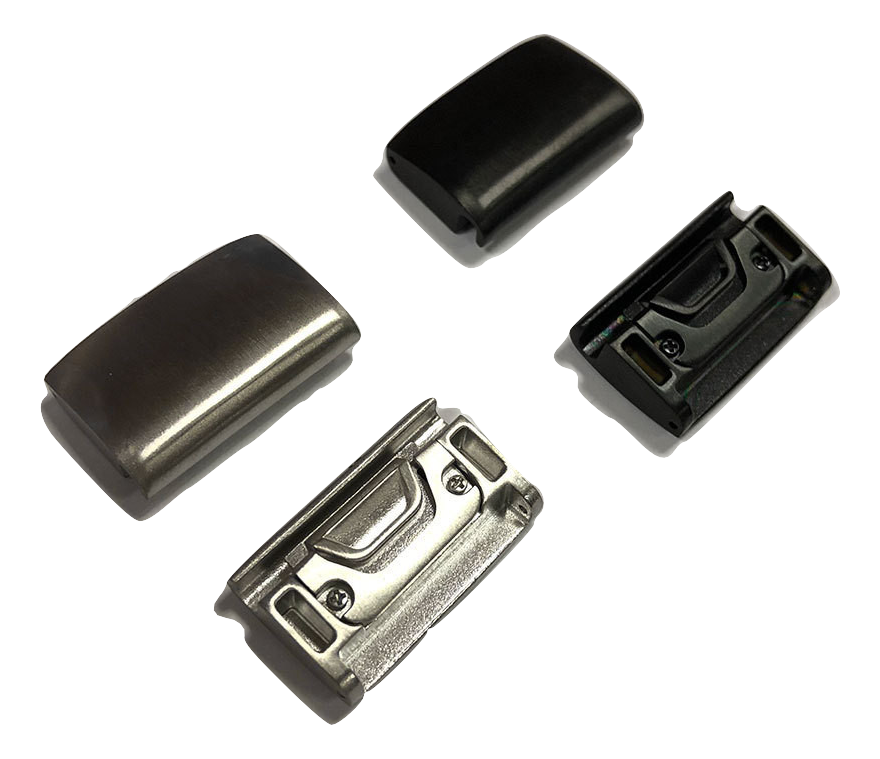

Our Garmin QuickFit Spring Bar Adapters are a simple plug and play adapter. These don't add any bulk as they simply slide into the normal slot of where the straps sit.

These adapters will allow you to use any 2 piece strap.

Features:

  • Fit straight ended straps only. These will not fit thicker straps.
  • Compatible with the Garmin watches listed below
  • 2 spring bars included
  • Made from 316L Stainless Steel

FAQ:

Do I need these for my Garmin watch which has QuickFit straps?

No, not really.

Our Garmin QuickFit watch range doesn't require these additional adapters as they already come pre-fitted with adapters to connect to your watch.

What are these used for then?

If you want to get access to our huge range of regular watch straps, these adapters will allow you to use our 18, 20 or 22mm (depending on your watch model) width watch straps.

Are the straps hard to get on and off the adapter?

Super easy. If you add a quick release strap, they will slide off when you engage the quick release spring bar.

A regular non quick release is also pretty easy. The drilled ends allow you to remove a normal strap using a pin to poke the spring bar out.

Where are your normal straps and bands?

You can view our 18mm straps and bands here.

You can view our 20mm straps and bands here.

You can view our 22mm straps and bands here.

NOTE:

These adapters are not compatible with our Supreme and Sharktooth NATOs due to their thickness.

How to find the right strap:

1. Find your exact watch model in the table below. For example, the Fenix 6x

2. This uses a 26mm QuickFit adapter as per the below table

3. The relevant non-Garmin strap size for that is 22mm.

4. Add the relevant adapter to your cart first.

5. Click here to view all our compatible straps (remember your non-Garmin strap size!)

Garmin Watch Model Garmin QuickFit Adapter Width Non-Garmin Strap Size
Approach S60 22mm 20mm
Approach S62 22mm 20mm
D2 Charlie 26mm 22mm
Descent MK1/MK2 26mm 22mm
Fenix 3 26mm 22mm
Fenix 3 HR 26mm 22mm
Fenix 5 22mm 20mm
Fenix 5 Plus 22mm 20mm
Fenix 5s 20mm 18mm
Fenix 5X 26mm 22mm
Fenix 6 22mm 20mm
Fenix 6s 20mm 18mm
Fenix 6X 26mm 22mm
Forerunner 745 22mm 20mm
Forerunner 935 22mm 20mm
Forerunner 945 22mm 20mm
Foretrex 601 26mm 22mm
Foretrex 701 26mm 22mm
Instinct 22mm 20mm
quatix 3 26mm 22mm
quatix 5 22mm 20mm
quatix 6 22mm 20mm
quatix 6x 26mm 22mm
Tactix Bravo 26mm 22mm



Smartwatch Strap Size Finder

TLDR: Make sure the strap you buy is a quick release strap for a smart watch. Find your smart watch below.

For smartwatches, ensure you purchase a Quick Release or two piece strap to ensure it doesn't cover your heart rate sensors.

A two piece strap is literally just that... it has two pieces and attaches to each end of the watch.

A single piece strap will travel underneath the watch which will block heart rate sensors. If you don't care about your heart rate, you can most definitely use these as well.

Be sure not to confuse the strap width with strap length.

Brand Model Strap Width
Apple All



There's two sizes to fit the smaller or larger models of the Apple Watch. All straps are compatible with all models of the Apple Watch.

Click here to view Apple Watch Straps

Diesel Full Guard 2.5 24mm Quick Release
Fossil Gen 4 - Venture HR 18mm Quick Release
Fossil Gen 4 - Explorist HR 22mm Quick Release
Fossil Gen 5 - Carlyle 22mm Quick Release
Fossil Gen 5 - Garrett 22mm Quick Release
Fossil Gen 5 - Julianna 22mm Quick Release
Fossil Hybrid Smartwatch HR Charter 18mm Quick Release
Fossil Hybrid Smartwatch HR Collider 22mm Quick Release
Fossil Hybrid Smartwatch HR Latitude 24mm Quick Release
Fossil Hybrid Smartwatch Machine 24mm Quick Release
Fossil Hybrid Smartwatch Neutra 22mm Quick Release
Fossil Sport 41mm 18mm Quick Release
Fossil Sport 43mm 22mm Quick Release
Garmin Approach S40 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Approach S42 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Approach S60 QuickFit 22mm [Not quick release]
Garmin Approach S62 QuickFit 22mm [Not quick release]
Garmin D2 Air 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin D2 Charlie QuickFit 26mm [Not quick release]
Garmin D2 Delta QuickFit 22mm [Not quick release]
Garmin D2 Mach 1 QuickFit 22mm [Not quick release]
Garmin Descent MK1/MK2 QuickFit 26mm [Not quick release]
Garmin epix QuickFit 22mm [Not quick release]
Garmin Fenix 3 and 3 HR QuickFit 26mm [Not quick release]
Garmin Fenix 5 and 5 Plus QuickFit 22mm [Not quick release]
Garmin Fenix 5S QuickFit 20mm [Not quick release]
Garmin Fenix 5X QuickFit 26mm [Not quick release]
Garmin Fenix 6 QuickFit 22mm [Not quick release]
Garmin Fenix 6S QuickFit 20mm [Not quick release]
Garmin Fenix 6X QuickFit 26mm [Not quick release]
Garmin Fenix 7 QuickFit 22mm [Not quick release]
Garmin Fenix 7S QuickFit 20mm [Not quick release]
Garmin Fenix 7X QuickFit 26mm [Not quick release]
Garmin Fenix Chronos 22mm Quick Release [Request free special Garmin Spring bars in notes]
Garmin Forerunner 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Forerunner 220/230/235/620 Click here to view compatible straps
Garmin Forerunner 235 Click here to view compatible straps
Garmin Forerunner 245 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Forerunner 645 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Forerunner 745 QuickFit 22mm [Not quick release]
Garmin Forerunner 935 QuickFit 22mm [Not quick release]
Garmin Forerunner 945 QuickFit 22mm [Not quick release]
Garmin Foretrex Purchase Adapter here
Garmin Hero Legacy 40mm 18mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Hero Legacy 45mm 22mm Quick Release [Request free special Garmin Spring bars in notes]
Garmin Instinct QuickFit 22mm [Not quick release]
Garmin Instinct 2s QuickFit 20mm [Not quick release]
Garmin Instinct 2 QuickFit 22mm [Not quick release]
Garmin Quatix 3 QuickFit 26mm [Not quick release]
Garmin Quatix 5 QuickFit 22mm [Not quick release]
Garmin Quatix 6 QuickFit 22mm [Not quick release]
Garmin Tactix Bravo QuickFit 26mm [Not quick release]
Garmin Tactix Delta QuickFit 26mm [Not quick release]
Garmin Venu 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Venu Sq 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Venu 2s 18mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Venu 2 22mm Quick Release [Request free special Garmin Spring bars in notes]
Garmin Venu 2 Plus 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivoactive 3 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivoactive 4 22mm Quick Release [Request free special Garmin Spring bars in notes]
Garmin Vivoactive 4S 18mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivomove 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivomove 3 20mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivomove 3S 18mm Quick Release [Request free special Garmin spring bars in notes]
Garmin Vivomove HR 20mm Quick Release [Request free special Garmin spring bars in notes]
G-SHOCK GA2000 24mm Quick Release
G-SHOCK GA2100 View adapters here
Huawei Watch GT 1 42mm 22mm Quick Release
Huawei Watch GT 1 46mm 22mm Quick Release
Huawei Watch GT 2 42mm 20mm Quick Release
Huawei Watch GT 2 46mm 22mm Quick Release
Huawei GT2e 22mm Quick Release
Kogan Active+ II 22mm Quick Release
Misfit Vapor 2 20mm Quick Release
Mobvoi TicWatch C2 (Excluding Rose Gold) 20mm Quick Release
Mobvoi TicWatch C2 Plus (Excluding Rose Gold) 20mm Quick Release
Mobvoi TicWatch C2 Rose Gold 18mm Quick Release
Mobvoi TicWatch C2 Plus Rose Gold 18mm Quick Release
Mobvoi TicWatch E 20mm Quick Release
Mobvoi TicWatch E2 22mm Quick Release
Mobvoi TicWatch E2 20mm Quick Release
Mobvoi TicWatch Pro 22mm Quick Release
Mobvoi TicWatch Pro 2020 22mm Quick Release
Mobvoi TicWatch Pro S 22mm Quick Release
Mobvoi Ticwatch Pro 3 (incl GPS) 22mm Quick Release
Mobvoi TicWatch S2 22mm Quick Release
Moochies Connect 4G 20mm Quick Release
Polar Vantage M2 22mm Quick Release
Samsung Galaxy Active (SM-R500) 20mm Quick Release
Samsung Galaxy Active2 40mm (SM-R830, SM-R835) 20mm Quick Release
Samsung Galaxy Active2 44mm (SM-R820) 20mm Quick Release
Samsung Galaxy Gear S2 Classic 20mm Quick Release
Samsung Galaxy Gear S3 (Classic) (SM-R755) 22mm Quick Release
Samsung Galaxy Gear S3 (Frontier) (SM-R760) 22mm Quick Release
Samsung Galaxy Gear Sport (SM-R600) 20mm Quick Release
Samsung Galaxy Watch 3 41mm (SM-R850, SM-R855) 20mm Quick Release
Samsung Galaxy Watch 3 45mm (SM-R840, SM-R845) 22mm Quick Release
Samsung Galaxy Watch 4 (ALL MODELS SM-R860, SM-R865, SM-R870, SM-R875,SM-R880, SM-R885, SM-R890, SM-R895) 20mm Quick Release - Click here to view the range
Samsung Galaxy Watch 42mm (SM-R810, SM-R815) 20mm Quick Release
Samsung Galaxy Watch 46mm (SM-R800, SM-R805) 22mm Quick Release
Skagen Falster 1 20mm Quick Release
Skagen Falster 2 20mm Quick Release
Skagen Falster 3 22mm Quick Release
Suunto 3 20mm Quick Release
Suunto 5 We don't have anything available
Suunto 7 24mm Quick Release [Request free special spring bars]
Suunto 9 Baro 24mm Quick Release [Request free special spring bars]
Suunto 9 Peak 22mm Quick Release [Request free special spring bars]
Suunto Spartan Sport 24mm Quick Release [Request free special spring bars]
Suunto Spartan Sport Wrist HR/Baro 24mm Quick Release [Request free special spring bars]
Withings Activite Pop 18mm Quick Release
Withings ScanWatch 38mm 18mm Quick Release
Withings ScanWatch 42mm 20mm Quick Release
Withings Steel HR 36mm (incl. Sport) 18mm Quick Release
Withings Steel HR 40mm (incl. Sport) 20mm Quick Release
How to find your Strap Size manually

Finding your strap size can be quite confusing. We'll try to make this as simple as possible

Smartwatches:

Click here to view common smartwatch sizes!



Method 1: Using a Ruler

The easiest and most accurate way to find your strap size is to use a ruler and measure between the lugs (aka measuring the "lug width").

The lugs are the pointy ends of your watch which hold the strap onto the watch.

Lugs
The above picture shows four lugs circled in red. Each side, (top two, and bottom two) will be the same measurement.
Now, with a ruler or tape measure, measure between the top or bottom set of lugs as pictured below:



Find your watch strap size



As you can see, we've measured this two ways, the top measuring device shows 22mm, but also, the bottom tape measure measures 22mm.

This means in our store, you would select a 22mm strap! That's it!

PS: Our straps will measure slightly smaller than 22mm so that it fits to your watch!

We do NOT recommend using camera ruler apps on your phone to measure. These can be inaccurate as a 1mm difference is enough for the strap to not fit to your watch.

Method 2: The lazy method:

What you will need:
- Your watch brand
- Your watch model number, year, name (model numbers are ideal because a manufacturer may change the size between different model numbers)

What you need to know:
This method works best for the more 'popular' brands/models. If you don't have the exact specifics of the watch - do not use this method.

Go to Google and in the search field, type the following:

(BRAND) (YEAR / MODEL NAME/NUMBER) Lug Width

Example 1:

Rolex 2016 Submariner 114060 Lug Width

Example 2:

Daniel Wellington 2019 Cornwall lug width

You will be able to find different websites which will state the lug width of the watch you are looking for. Here's an example of what to look for:



Note: if you have an odd numbered strap size, for example, a 21mm lug width, you can use a 20mm strap on your watch. This will mean there will be a 1mm gap however.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Simon (Sydney, AU)
Great Accessory

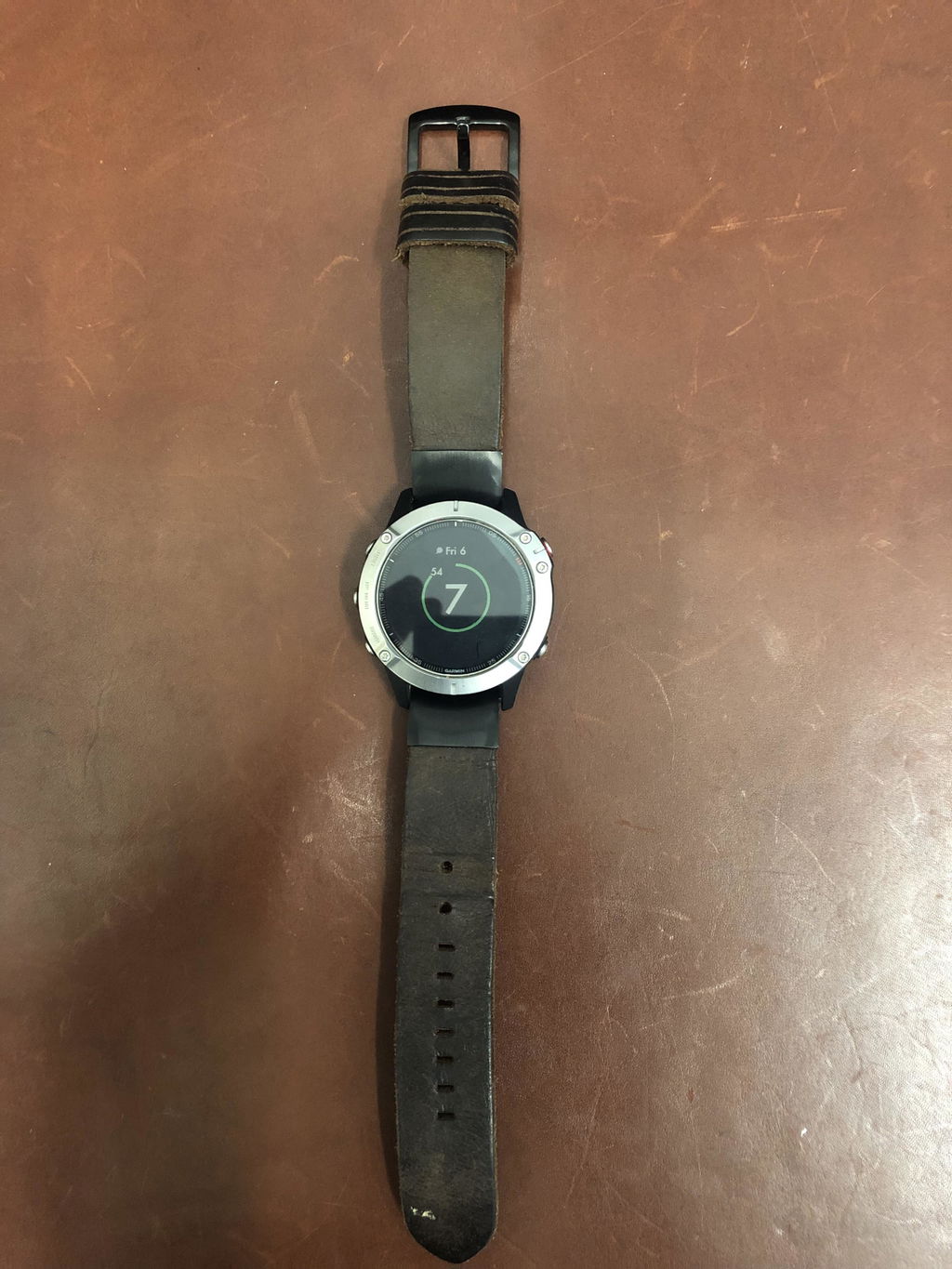

Love the spring adaptors with my leather band for Fenix 6.

M
Marshall
Quality

Quality watch band. Bit narrow for what I was honestly after, but quality is top notch. Customer service is awesome and were happy to help when I ordered wrong type for my garmin watch

P
Philip (Gold Coast, AU)
Speedy delivery

Super happy with 2 garmin bands I ordered. From guidance during online ordering to select correct band for each model to delivery. Delivery from Melbourne to Gold Coast within 24 hours ⭐️

Garmin QuickFit Spring Bar Adapters - Wear Any Non-Garmin Strap!

Garmin QuickFit Spring Bar Adapters - Wear Any Non-Garmin Strap!

$19.95 AUD
26mm
22mm
20mm
Silver
Rose Gold
Black
22mm
20mm
18mm
